NuPhy Gem80 Barebones Wireless Custom Mechanical Keyboard Obsidian Black

PLEASE NOTE: Requires Switches and Keycaps to complete.

The NuPhy Gem80 is a premium, barebones mechanical keyboard designed for enthusiasts who crave a personalized typing experience.

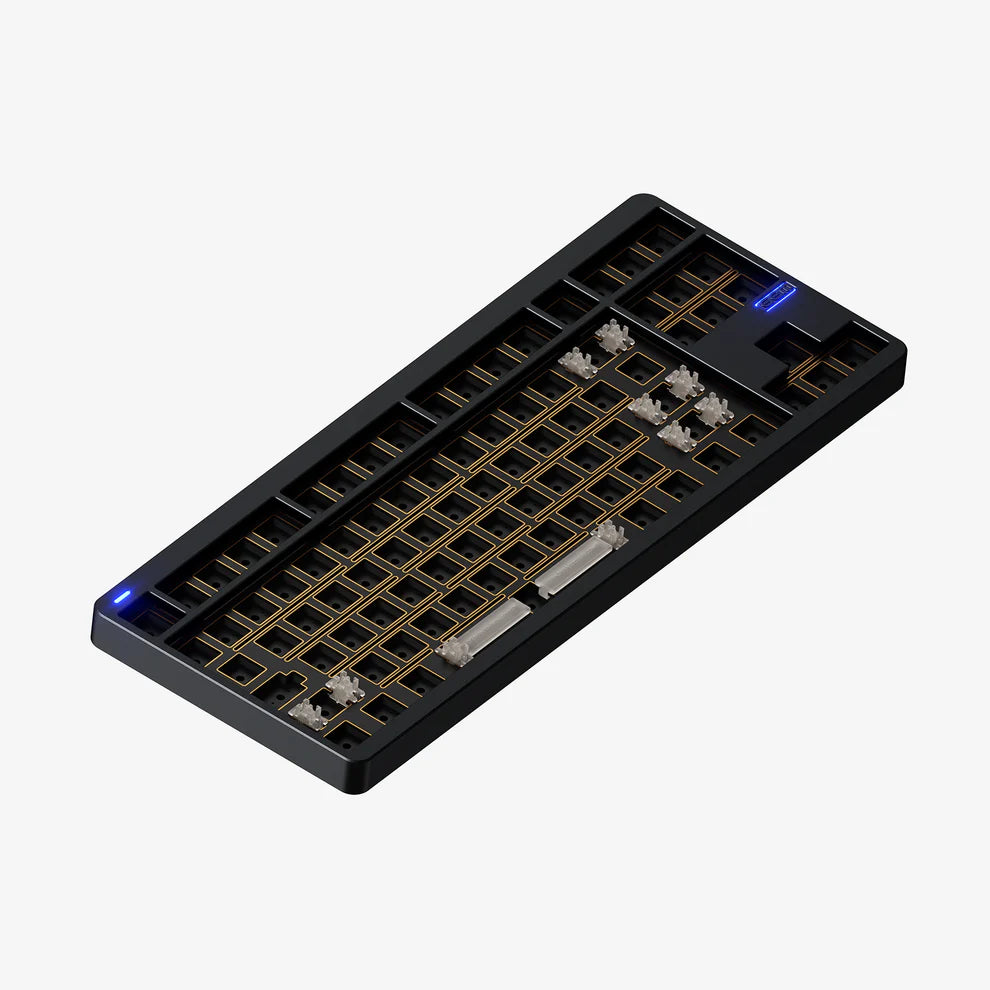

Highly Customizable: It arrives pre-built with the essentials - PCB, stabilizers, and sound dampening - but lets you choose the perfect keycaps and switches to match your style and typing preferences.

Wireless Freedom: Choose between wired, 2.4GHz wireless, or Bluetooth connectivity for a clutter-free desk setup or on-the-go use.

Gasket Mount Design: This innovative mounting style absorbs sound and creates a softer typing feel, reducing fatigue during long typing sessions.

Multiple Plate Options: Experiment with different plate materials (sold separately) like FR4 or aluminum to find the sound and feel you prefer.

QMK/VIA Compatibility: Program your ideal keymap and macros using the intuitive QMK or VIA software for maximum control and efficiency.

Compact 75% Layout: The space-saving 75% layout includes all the essential keys while maintaining a compact footprint for better desk organization.

Whether you're a seasoned keyboard enthusiast or looking to craft your first custom keyboard, the NuPhy Gem80 offers the perfect foundation for a truly personalized typing experience.

Specifications:

• Layout: ANSI 80%/TKL

• Number of Keys: 88

• Switch Type: Normal-profile

• Stabilizer Type: Plate Mounted

• Mount Type: Gasket & Top

• Hot-swappable Support: Yes (3/5 pin MX-style)

• N-key Rollover Support: Yes

• Backlight: South-facing RGB-LED

• Backlight Modes: 40+

• Compatible System: macOS/Windows/Linux/Android/iOS

• Operating Environment: -10 to 50

• MCU: ARM STM32F072

• RF: NRF52810 (tri-mode)
• Wired Polling Rate: 1000Hz
• 2.4GHz Polling Rate: 1000Hz (tri-mode)
• Bluetooth 5.0 Polling Rate: 125Hz (tri-mode)
• Top Case: Aluminum
• Bottom Case: PC
• Plate Material: Fr4

Size & Weight:

• Length: 141.3mm (5.56 inches)
• Width: 358.1mm (14.10 inches)
• Back Height: 36.7mm (1.44 inches)
• Front Height: 21.5 mm (0.85 inches)
• Weight: 1120 grams (2.47 pounds)
• Type Angle: 6

Power & Battery (Tri Mode):

• Battery Capacity: 4000mAh
• Working Time (all lights on): 24~45 hours (lab test result)
• Working Time (homing bars only): 34~70 hours (lab test result)
• Working Time (all lights off): Up to 330 hours (lab test result)

What's in the box:

• 1 x Gem80 Keyboard Kit
• 1 x USB-C Data Cable
• 1 x 2.4G Receiver (Tri-mode)
• 1 x Keycap/Switch Puller
• 3 x Extra Switches
• 5 x Silicone Sets
• 1 x Screwdriver
• 1 x Extra Food Pad Set
• 1 x Installation Guide
• 1 x Quick Guide
• 1 x Q&A
